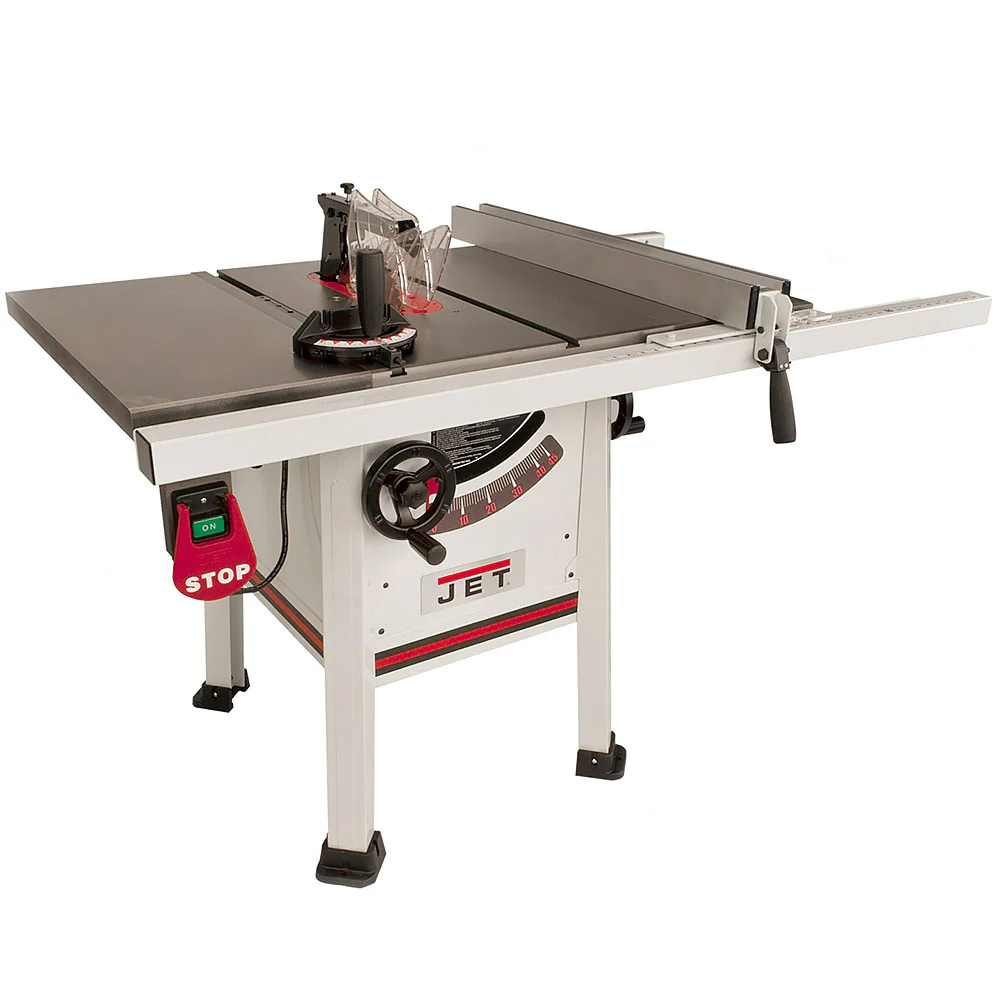

JET 10 Inch ProShop Table Saw 1-3/4 HP 30 Inch Fence Cast Wing JPS-10

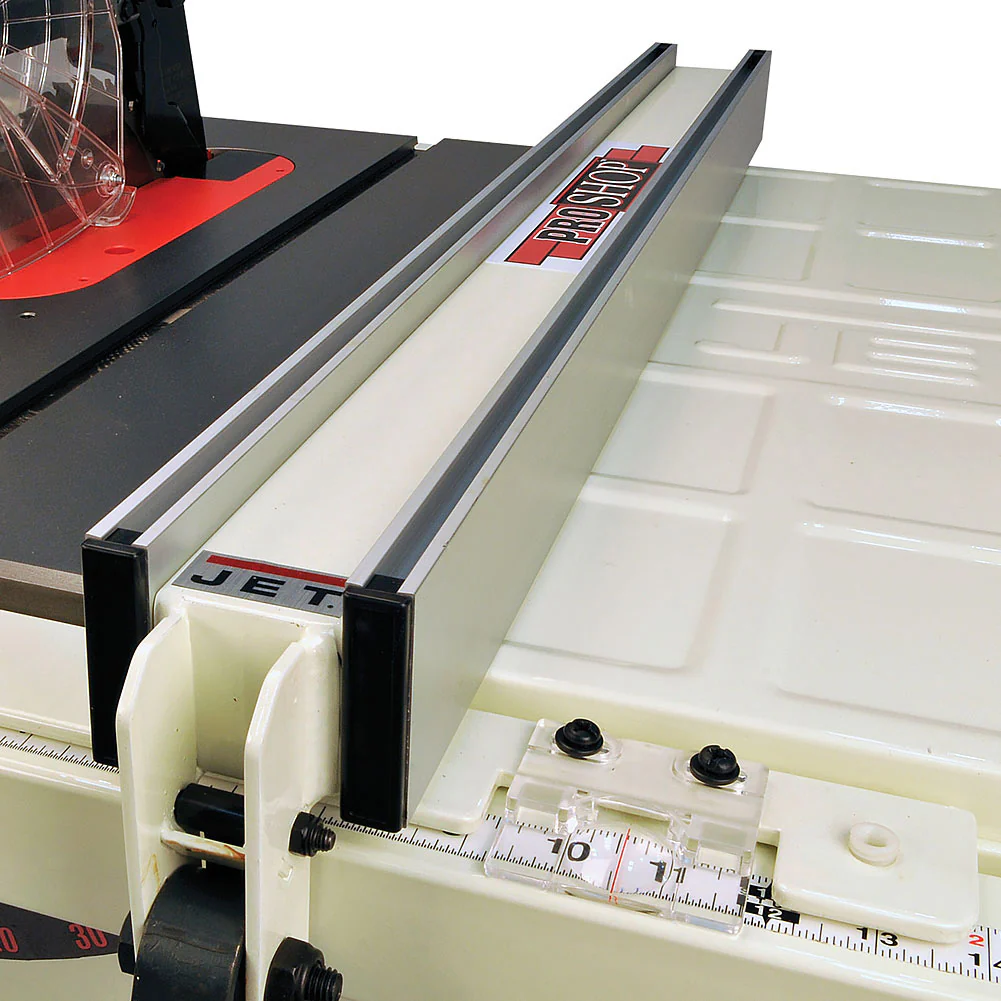

The JET ProShop Table Saw offers features you expect from a high-end cabinet saw, in the compact design of a contactor-style machine. The transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. The exclusive ProShop fence system is available in 30" or 52" rip capacity.

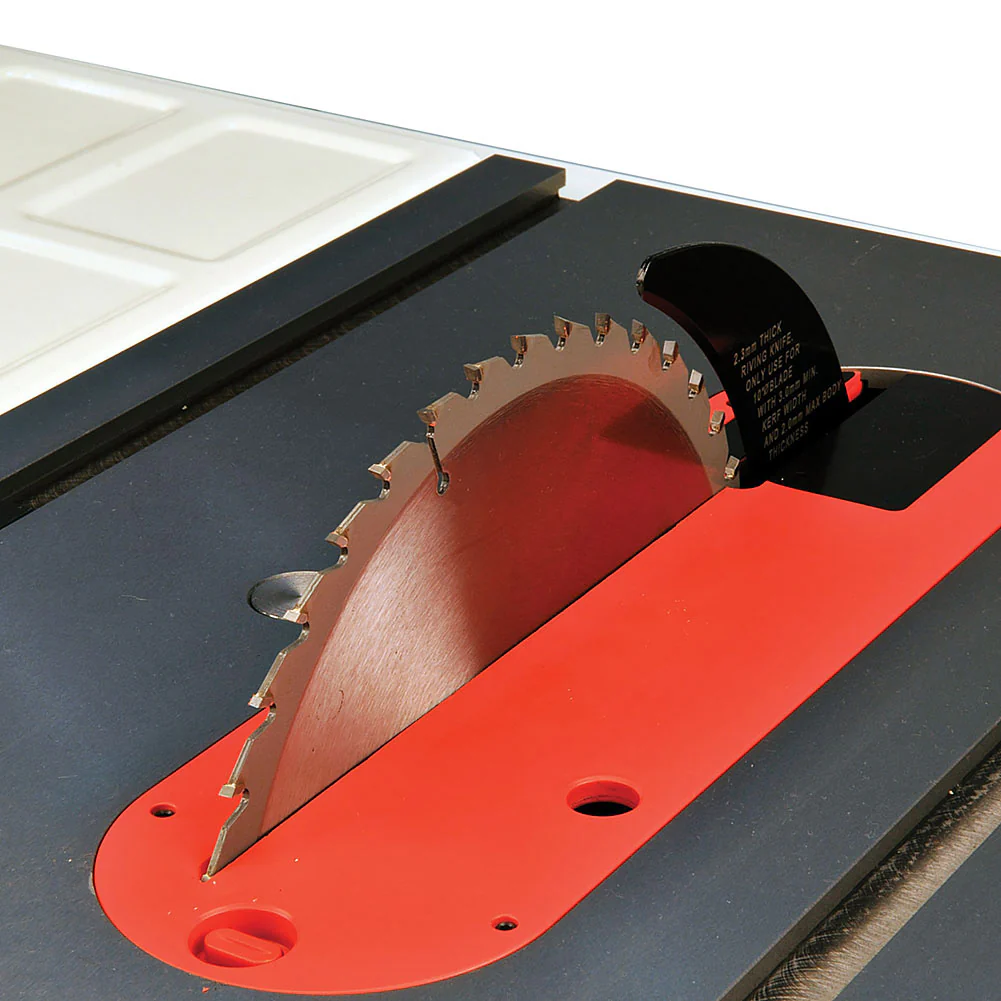

• Riving knife maintains close blade proximity to reduce chance of kickback
• Integrated arbor lock is accessed from table top for rapid blade change

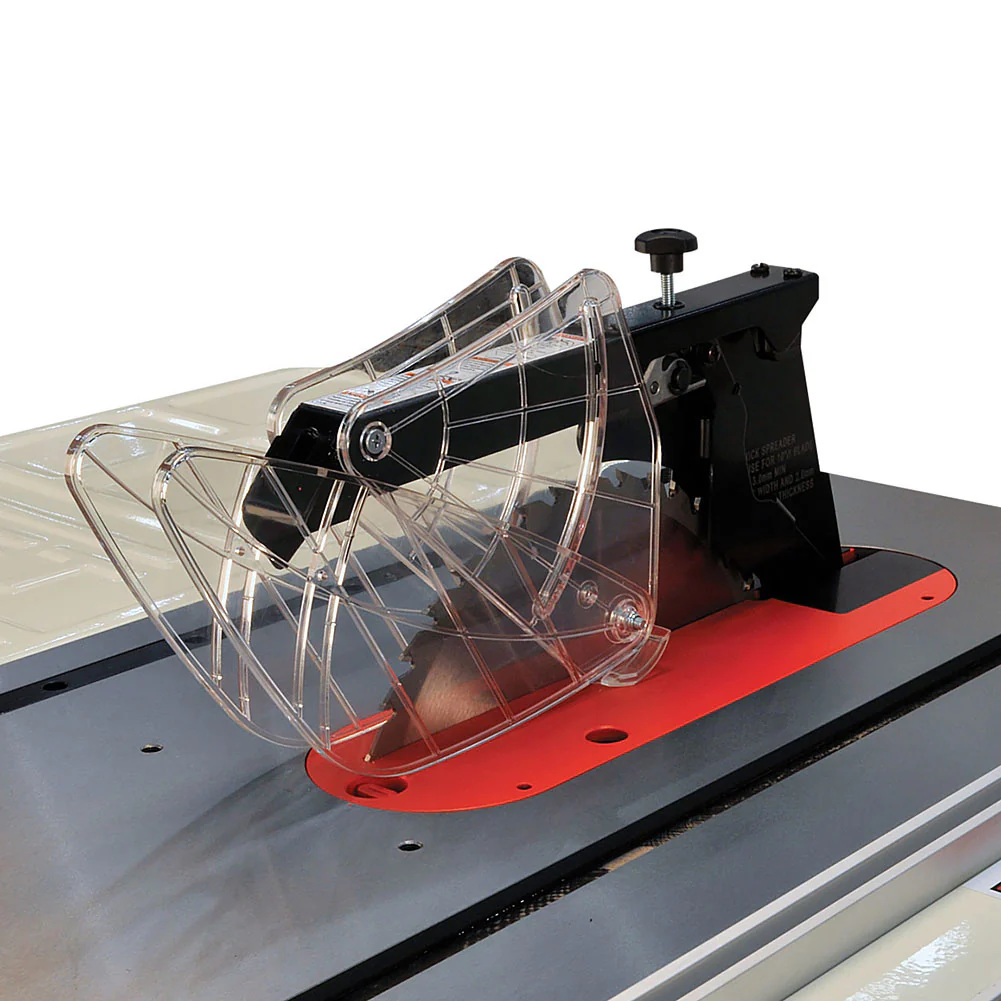

• Blade guard and riving knife have quick release for tool-less mounting and removal

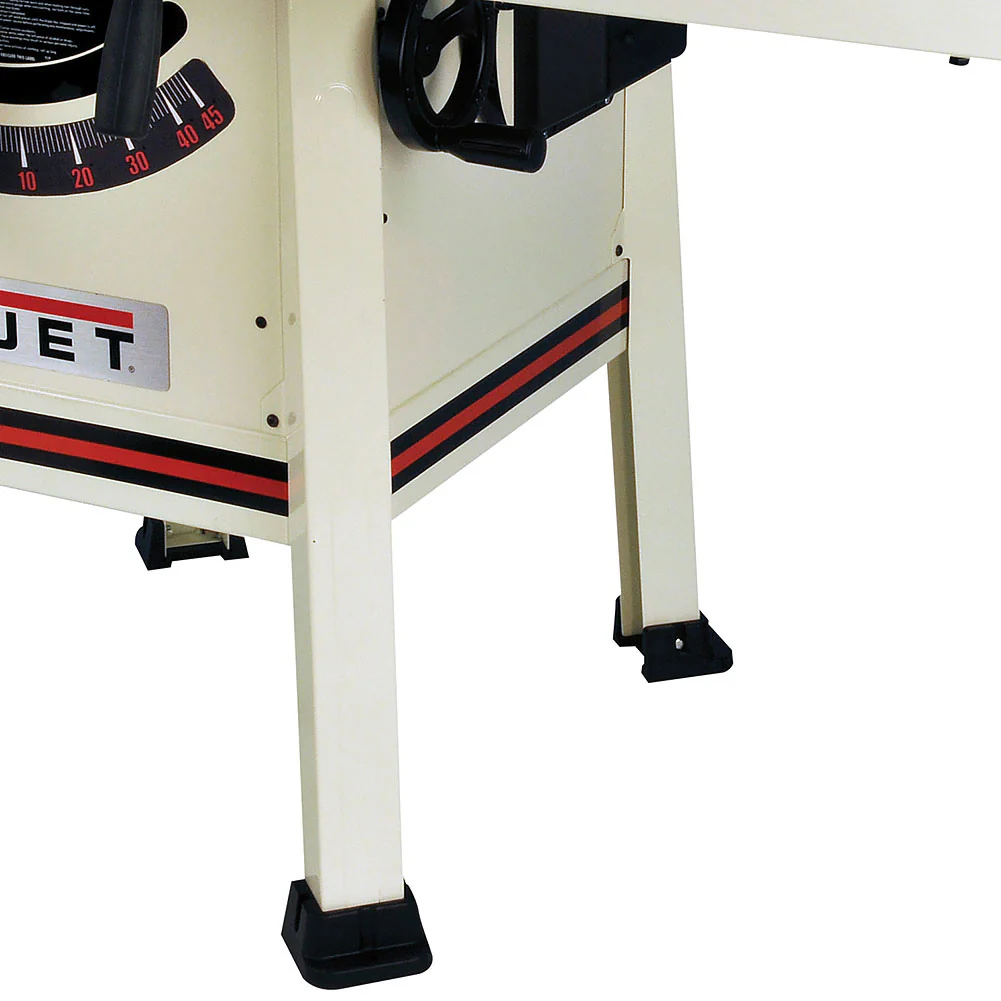

• Enclosed cabinet with exclusive leg stand design for easy assembly
• Heavy duty cast iron table with T-style miter gauge slot
• Sloped cabinet floor and 4" extraction port enhance dust collection efficiency

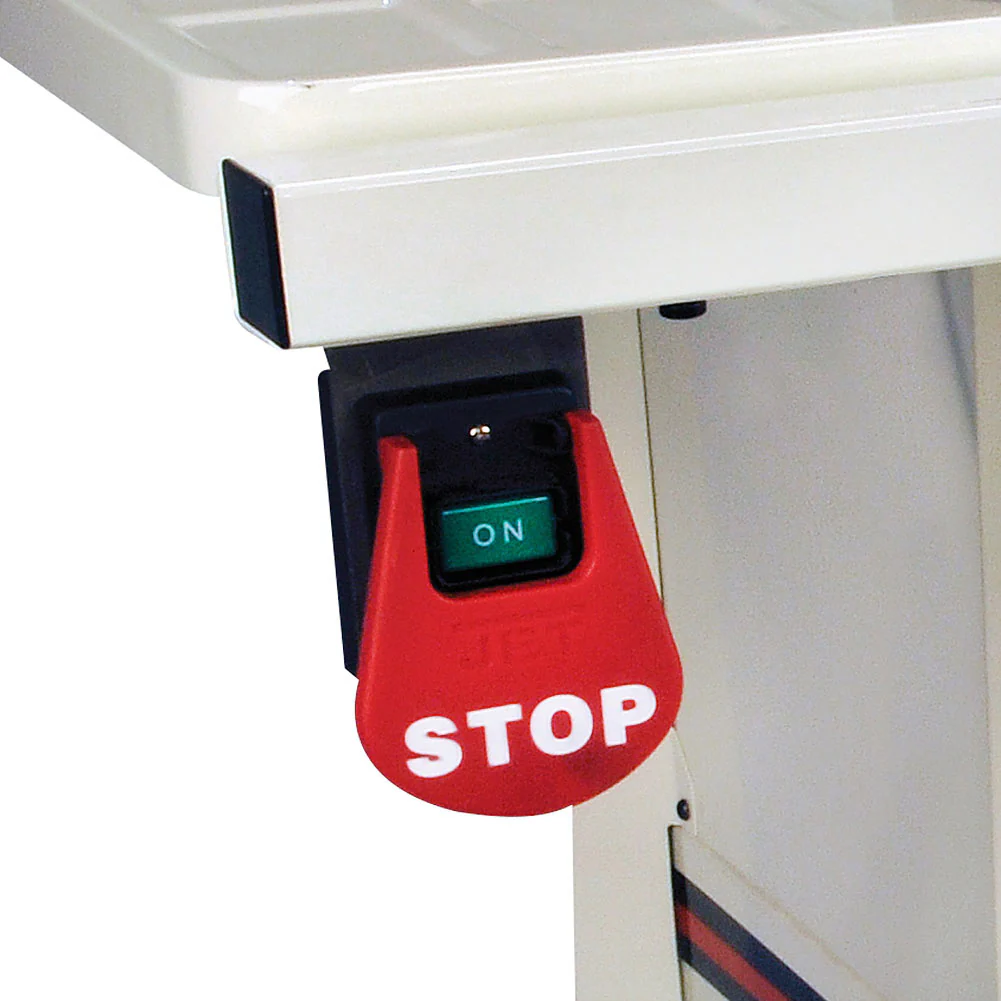

• Easy-to-reach control switch
• Rigid, left-tilting cast iron trunnion
• Powder coated paint for a long-lasting, chip-resistant finish
• 10" blade included

Specifications:
Style: Contractor
Blade Diameter: 10"
Arbor Diameter: 5/8"
Arbor Speed: 4000 RPM
Maximum Depth of Cut: 3-1/8"
Maximum Depth of Cut at 45 Degrees: 2-1/8"
Maximum Rip Left of Blade: 12"
Maximum Rip Right of Blade: 30"
Table in Front of Saw Blade at Maximum Depth of Cut: 10"
Maximum Diameter of Dado: 8"
Maximum Width of Dado: 13/16"
Table Type: Cast Iron
Table Size with Extension: 27" x 44"

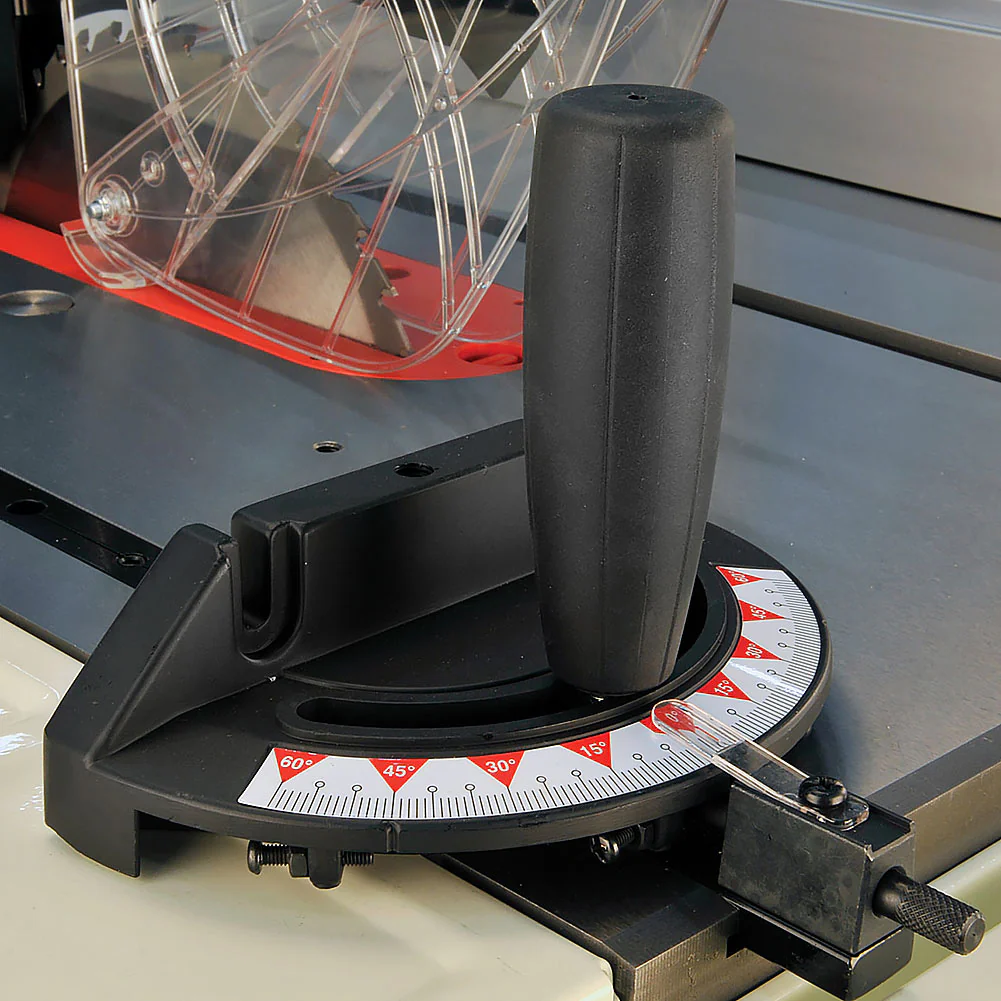

Miter Gauge Type: T-Slot with Stops
Dust Collection Minimum CFM Required: 350 CFM
Dust Port Outside Diameter: 4"
Motor Power: 1-3/4 HP
Motor Voltage: 115/230
Prewired Voltage: 115
Motor Amps: 15/7

JET stock number 725000K
